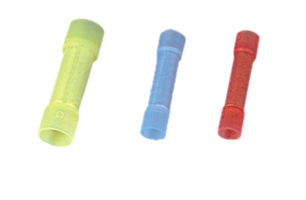

Among the Long Shape Entire Insulation Attaches



Imax:26-22 A.W.G :9A   22-16 A.W.G :19A    16-14 A.W.G :27A     12-10 A.W.G :48A
Enduring voltage: 105℃   600V    Insulating material: Nylon
Item No
Dimension(mm)
Joint material
Sectional area of conductor :A.W.G
color
L
DΦ
dΦ
BNYF 0.5
20
2
1.3
purple copper
26 - 22 A.W.G   0.2 - 0.5 mm²
yellow
BNYF 1.25
27.3
3.2
1.7
purple copper
22 - 16 A.W.G   0.5 - 1.5 mm²
red
BNYF 2
27.3
3.8
2.3
purple copper
16 - 14 A.W.G   1.5 - 2.5 mm²
blue
BNYF 5.5
27.3
5.3
3.4
purple copper
14 - 10 A.W.G   4 - 6 mm²
yellow
