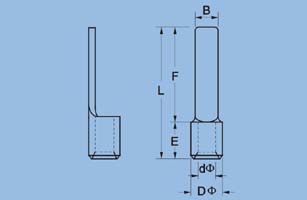

Non-Insulated Blade Terminal |
| |
|
|
|
| |
| |
Sectional area of conductor:0.5 - 1.5 mm ² (A.W.G 22 - 16 ) Imax = 19A Material: Copper thickness :0.75mm |
| Item No |
Dimension |
| B |
L |
F |
E |
DΦ |
dΦ |
DBN 1.25 - 10 |
2.3 |
14.8 |
10 |
4.8 |
3.4 |
1.7 |
DBN 1.25 - 11 |
3 |
15.8 |
11 |
DBN 1.25 - 14 |
3 |
18.8 |
14 |
DBN 1.25 - 18 |
2.3 |
22.8 |
18 |
|
| |
| |
Sectional area of conductor:1.5 - 2.5 mm ² (A.W.G 16 - 14 ) Imax = 27A Material: Copper thickness :0.8mm |
| Item No |
Dimension |
| B |
L |
F |
H |
DΦ |
dΦ |
DBN 2 - 9 |
2.8 |
13.8 |
9 |
4.8 |
4.1 |
2.3 |
DBN 2 - 18 |
2.3 |
22.8 |
18 |
|
| |
| |
Sectional area of conductor:4 - 6 mm ² (A.W.G 12 - 10 ) Imax = 48A Material: Copper thickness :1.0mm |
| Item No |
Dimension |
| B |
L |
F |
H |
DΦ |
dΦ |
DBN 5.5 - 10 |
2.8 |
14.8 |
10 |
6 |
5.6 |
3.4 |
DBN 5.5 - 14 |
4.5 |
21 |
14 |
DBN 5.5 - 18 |
4.5 |
23 |
18 |
DBN 8 - 14 |
5 |
22.5 |
14 |
8.5 |
7.2 |
4.5 |
DBN 14 - 16 |
6 |
30.6 |
16 |
14 |
9 |
6.5 |
|
| |
| |
|
|
