Insulated blade terminals




Sectional area of conductor:0.5 - 1.5 mm² (A.W.G 22 - 16 )   Imax = 19A   material: Copper   thickness :0.75mm
Item No

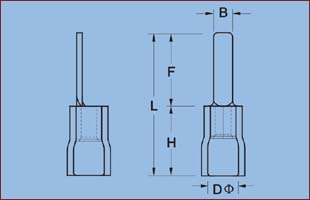

Dimension
color
B
L
F
H
DΦ
DBV 1.25 - 10
2.3
20
10
10
4.3
red
DBV 1.25 - 11
3
21
11
DBV 1.25 - 14
3
24
14
DBV 1.25 - 18
2.3
28
18


Sectional area of conductor:1.5 - 2.5 mm² (A.W.G 16 - 14 )   Imax = 27A   material: Copper   thickness :0.8mm
Item No
Dimension
color
B
L
F
H
DΦ
DBV 2 - 10
2.4
19
9
10
4.9
blue
DBV 2 - 14
2.4
24
14
DBV 2 - 18
2.4
28
18


Sectional area of conductor:4 - 6 mm² (A.W.G 12 - 10 )   Imax = 48A   material: Copper   thickness :1.0mm
Item No
Dimension
color
B
L
F
H
DΦ
DBV 5.5 - 10
2.8
22.5
10
13
5.6
yellow
DBV 5.5 - 14
4.5
26.5
14
DBV 5.5 - 18
4.5
30.5
18
