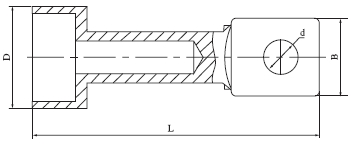

DTF Water-proof Copper Lug


Model
Dimensions (mm)
B
D
d
L
DTF-25
26
37
11
110
DTF-35
26
37
11
110
DTF-50
26
37
11
112
DTF-70
30
37
11
114
DTF-95
30
37
11
114
DTF-120
32
37
13
126
DTF-150
32
37
13
126
DTF-185
36
41
13
134
DTF-240
40
41
13
136
DTF-300
40
41
17
141
DTF-400
44
41
17
178
DTF-500
44
41
17
184

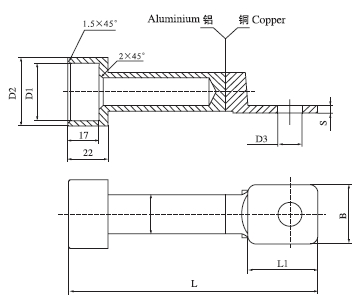

DTF Water-proof Cu - Al Copper Lug



Model
Dimensions (mm)
D1
D2
D3
L
L1
B
S
DTL-F-25
31
37
11
120
30
26
3.5
DTL-F-35
31
37
11
120
30
26
3.5
DTL-F-50
31
37
11
122
34
30
3.5
DTL-F-70
31
37
11
124
34
30
4
DTL-F-95
31
37
11
124
34
30
4
DTL-F-120
31
37
13
136
38
32
4.5
DTL-F-150
31
37
13
136
38
32
5
DTL-F-185
35
41
13
144
42
36
5.5
DTL-F-240
35
41
13
146
46
40
6.8
DTL-F-300
35
41
17
151
50
40
7.8
DTL-F-400
35
41
17
189
50
44
12.8
DTL-F-500
35
41
17
194
50
44
14.8
