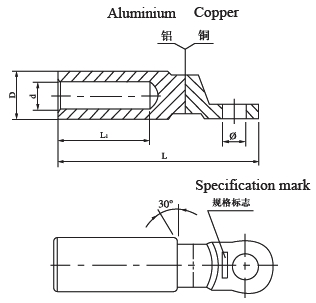

DTL-2 Bimetallic Compression Lug Cu - Al




Model
Dimensions (mm)
Ø
D
d
L
L1
DTL-2-16
8.5
16
5.5
90
42
DTL-2-25
8.5
16
6.5
90
42
DTL-2-35
8.5
16
8
90
42
DTL-2-50
13
20
9
90
43
DTL-2-70
13
20
11
90
43
DTL-2-95
13
20
12.5
90
43
DTL-2-120
13
25
13.7
115
60
DTL-2-150
13
25
15.5
118
60
DTL-2-185
13
32
17.5
122
60
DTL-2-240
13
32
19.5
122
60
DTL-2-300
13
34
22.5
125
62

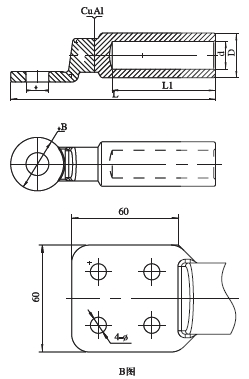

Cu - Al Connecting Terminal


Model
Dimensions (mm)
Ø
D
d
L
L1
B
CAU-16
10.5
16
5.5
75
32
20
CAU-25
10.5
16
6.5
75
32
20
CAU-35
12.8
16
8
86
38
25
CAU-50
12.8
20
9
86
38
25
CAU-70
12.8
20
11
86
38
25
CAU-95
12.8
20
12.5
86
38
25
CAU-120
12.8
25
13.7
115
58
30
CAU-150
12.8
25
15.5
115
58
30
CAU-185
12.8
32
17
115
58
30
CAU-240
12.8
32
19.5
115
58
30
CAU-300
16.5
40
23.3
153
88
36
CAU-400
16.5
40
26
153
88
36
CAU-500
B PIC
47
29.1
200
100
B PIC
CAU-630
47
32.5
200
100
