DTLB Cu - Al Copper Lug (Explosive Welding)




Model

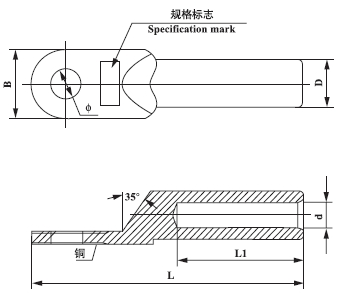

Dimensions(mm)
Ø
D
d
L
L1
B
DTLB-10
8.5
10
5
65
32
16
DTLB-16
8.5
10
5.5
70
32
16
DTLB-25
8.5
12
7
75
34
18
DTLB-35
10.5
14
8.5
85
40
20.5
DTLB-50
10.5
16
9.7
90
42
23
DTLB-70
12.5
18
11.5
102
47
26
DTLB-95
12.5
21
13.5
112
50
28
DTLB-120
14.5
23
15
120
53
30
DTLB-150
14.5
25
16.5
126
55
34
DTLB-185
16.5
27
18.5
133
58
37
DTLB-240
16.5
30
21
140
60
40
DTLB-300
21
34
23
165
65
50
DTLB-400
21
34
26.5
170
70
50
DTLB-500
21
42
29.5
190
75
60
Clamp bodies are made of aluminium ,the other parts are steel and hot-dip galvanized.



DTL Cu - Al Terminal (Dual Hole Type)


Model
Dimensions(mm)
Ø
D
d
L
L1
L2
L3
B
A
DTL-16S
8.4
10
5.5
90
32
45
20
18
3
DTL-25S
8.4
12
7
95
34
45
20
20
3.2
DTL-35S
8.4
14
8.5
107
40
50
20
23
3.6
DTL-50S
8.4
16
9.7
115
42
50
20
23
4
DTL-70S
10.5
18
11.5
128
47
62
25
28
4.5
DTL-95S
10.5
21
13.5
138
50
62
25
28
4.8
DTL-120S
12.5
23
15
152
53
72
30
34
5.5
DTL-150S
12.5
25
16.5
155
55
72
30
34
6
DTL-185S
12.5
27
18.5
168
58
80
35
40
6.7
DTL-240S
12.5
30
21
172
60
80
35
40
7
DTL-300S
16.5
34
23
195
65
90
40
50
8.5
DTL-400S
16.5
38
26
200
70
90
40
50
9
