FD、FG、FR、FDZ、FF Dampers

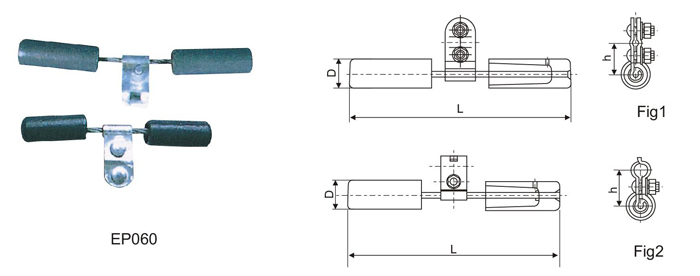

Counter weights are grey iron, painted, the other parts are hot-dip galvanized steel.

Model Conductor cross section(mm2) Fig Dimensions(mm) Weight(kg)
Steel Wire AAC＆ ACSR L D h
FD-1
 　 35-50 2 300 40 40 1.5
FD-2
 　 70-95 1 370 46 55 2.4
FD-3
 　 120-150 1 450 56 65 4.5
FD-4
 　 185-240 1 500 62 0 5.6
FD-5
 　 300-400 1 550 67 70 7.2
FD-6
 　 500-630 1 550 70 75 8.6
FD-35
 35 　 2 300 42 50 1.8
FD-50
 50 　 2 350 46 60 2.4
FD-70
 70 　 1 400 56 60 4.2
FD-100
 100 　 1 500 62 65 5.9

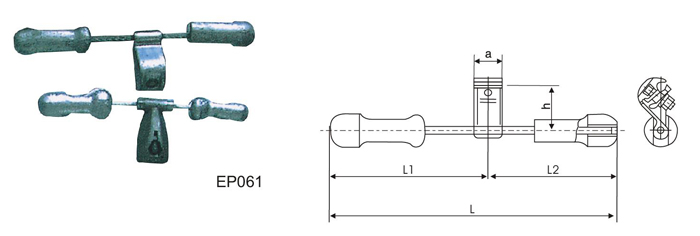

The clamp is alloy aluminum and counter weight are grey iron, The other part are hot-dip galvanized steel.

Model Applicable Conductor Dia(mm) Dimensions(mm) Weight(kg)
L1 L2 h a
FR-1
 7.0-12.0 239 190 80 50 2.6
FR-2
 11.0-22.0 239 190 80 50 2.6
FR-3
 18.0-28.0 280 225 90 60 4.97
FR-4
 23.0-36.0 300 250 97 60 4.5

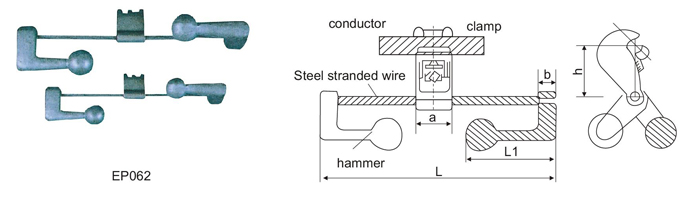

The clamp is alloy aluminum and counter weight are grey iron, The other part are hot-dip galvanized steel.

Model Conductor(mm2) Dimensions(mm) Specification Weight(kg)
a b h L1 L
FDZ-1
 35-50 50 33 51 120 320 19/1.8 1.8
FDZ-2
 70-95 50 32 51 130 360 19/1.8 2.3
FDZ-3
 120-150 55 42 62 150 450 19/2.2 4.2
FDZ-4
 185-240 60 52 64 160 500 19/2.2 5.3
FDZ-5
 300-400 60 60 87 180 550 19/2.6 6.5
FDZ-6
 500-630 60 60 87 182 550 19/2.6 7.6

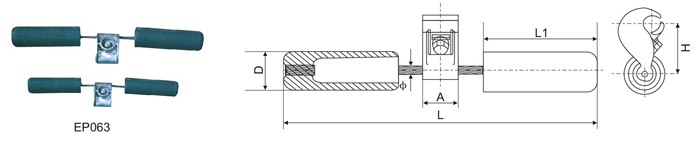

The clamp is alloy aluminum and counter weight are grey cast iron, painted. The counter weight piece will be hot-dip galvanized to the customer’s demand
Model Applicable Conductor(mm) Dimensions(mm) Slip Strength Weight(kg)
D A H1 L1 L2
FD-1L
LGJ-35-50
 40 50 81 300 95 7/2.6 1.5
FD-2L
LGJ-70-90
 46 50 81 370 130 7/3.0 2.4
FD-3L
LGJ-120-150
 56 50 81 450 150 19/2.2 4.5
FD-4L
LGJ-185-240
 62 50 91 500 175 19/2.2 5.6
FD-5L
LGJ-300-500
 67 50 96 550 200 19/2.6 7.2
FD-6L
LGJ-500-630
 70 50 96 550 200 19/2.6 8.6
FF-5G
LGJ-300-400
 67 　 90 550 200 　 　
