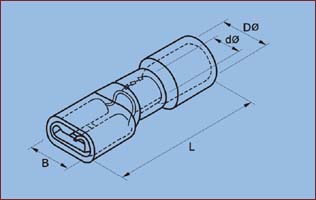

Fully vinyl Insulated disconnects



Sectional area of conductor:0.5 - 1.5 mm² (A.W.G 22 - 16 )   Imax = 10A  Material: Copper
Item No
NEMA TAB(mm)
Dimension(mm)
B
DΦ
dΦ
L
FDFD 1.25 - 187(5)
0.5 x 4.75
5.6
3.8
1.7
20
FDFD 1.25 - 187(8)
0.8 x 4.75
5.6
3.8
1.7
20
FDFD 1.25 - 250
0.8 x 6.35
7.4
3.8
1.7
21.5


Sectional area of conductor:1.5 - 2.5 mm² (A.W.G 16 - 14 )   Imax = 15A   Material: Copper
Item No
NEMA TAB(mm)
Dimension(mm)
B
DΦ
dΦ
L
FDFD 2 - 187(5)
0.5 x 4.75
5.6
4.3
2.3
20
FDFD 2 - 187(8)
0.8 x 4.75
5.6
4.3
2.3
20
FDFD 2 - 250
0.8 x 6.35
7.4
4.3
2.3
21.5


Sectional area of conductor:4 - 6 mm² (A.W.G 12 - 10 )   Imax = 24A    Material: Copper
Item No
NEMA TAB(mm)
Dimension(mm)
B
DΦ
dΦ
L
FDFD 5.5 - 250
0.8 x 6.35
7.4
5.7
3.4
25
