FLAG Shape Female Insulated Joints


Imax:22-18 A.W.G :10A   16-14 A.W.G :15A     12-10 A.W.G :24A
Enduring voltage: 105℃   600V    material:Copper   Insulating material:Nylon     Thickness :0.4mm
Item No
Connecting spec.

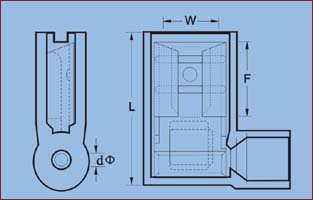

Dimension(mm)
Sectional area of conductor ：A.W.G
W
F
L
dΦ
FLDNY 1.25 - 250
0.8 x 6.35
6.6
7.6
16
1.7
22 - 18 A.W.G   0.5 - 1.5 mm²
FLDNY 2 - 250
0.8 x 6.35
6.6
7.6
16
1.7
16 - 14 A.W.G   1.5 - 2.5 mm²
FLDNY 5.5 - 250
0.8 x 6.35
6.6
7.6
16
1.7
12 - 10 A.W.G   4 - 6 mm²
