Insulated Receptable Disconnects






Sectional area of conductor:0.5 - 1.5 mm² (A.W.G 22 - 16 )   Imax = 10A  Material: Copper
Item No
Thickness

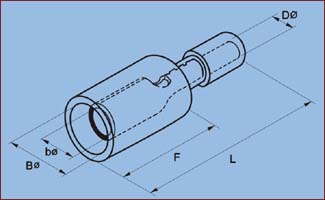

Dimension(mm)
color
bΦ
BΦ
DΦ
F
L
FRD 1.25 - 156
0.4
4
6.3
1.7
13
24.5
red


Sectional area of conductor:1.5 - 2.5 mm² (A.W.G 16 - 14 )   Imax = 15A   Material: Copper
Item No
Thickness
Dimension(mm)
color
bΦ
BΦ
DΦ
F
L
FRD 2 - 156
0.4
4
6.3
2.3
14
24.5
blue
FRD 2 - 195
0.4
5
7
2.3
14
24.5


Sectional area of conductor:4 - 6 mm² (A.W.G 12 - 10 )   Imax = 24A   Material: Copper
Item No
Thickness
Dimension(mm)
color
bΦ
BΦ
DΦ
F
L
FRD 5.5 - 195
0.4
5
7
3.4
14
29.5
yellow
