Hydraulic Crimping Tools |
| |

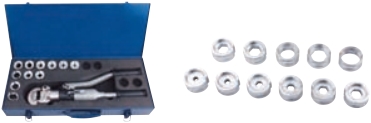

QZD-400A
|
|
|
| |
|
|
|
| |
|
|
|
|

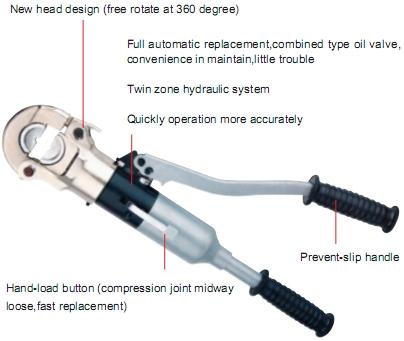

The tool has two stages speed of the ram and automatically switches form
a fast advancing speed to a slower crimping speed. for ease of operation and comfort the operator the tool head can be fully rotated through 180 degress.
The tool is provided with full automatic reaction when crimping complete,
it can save the time of manual pressure release.
With interchangeable crimping dies with multiple crimping geometry’s. |
| |
|
|
| |
|
|

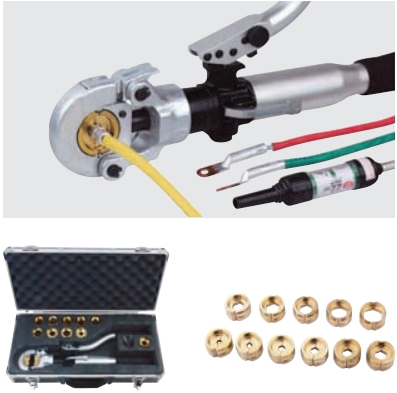

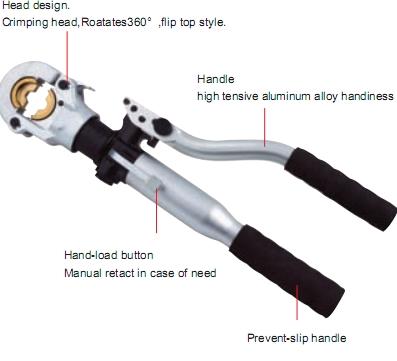

HT-300 |
|
|
| |
|
|
|
 |
| |
|
|
Model |
Range of Application |
Crimping force |
Stroke |
Standard dies |
Weight |
Packaging & Size |
Package |
Al ,Cu Terminal Crimping |
QZD-400A |
16-400mm2 |
10 ton |
16mm |
16,25,35,50,70,95,120,150,
185,240,300,400mm2 |
6.2Kg |
690x250x120mm |
Steel case |
HT-300 |
16-300mm2 |
10 ton |
17mm |
16,25,35,50,70,95,120,150,
185,240,300mm2 |
5.0Kg |
690x250x120mm |
Aluminum alloy
code case |
|
| |
|
|
| |
|
|
| |
|
|

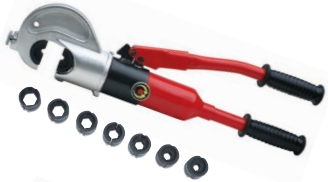

CYO-300C |
|
|
| |
|
|
|
|
Safety system inside
It is applicable crimping cable copper and aluminum terminals.
Hexagonal mould is adopted to ensure tight press connection.
With two stages speed of high and low pressure, it is easy for operating oil feeding speed and convenient for save oil by adopting rotary type extrusion mode. |
| |
|
|
| |
|
|

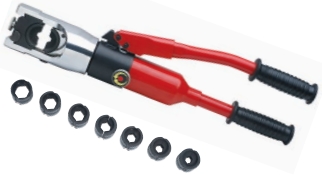

ZYO-400 |
|
|
| |
|
|
|
|
Safety system inside
It is applicable crimping cable copper and aluminum terminals.
Hexagonal mould is adopted to ensure tight press connection. |
| |
|
|
| |
|
|
ZCO-400 |
|
|
| |
|
|
|
|
Safety system inside
It is applicable crimping cable copper and aluminum terminals.
Hexagonal mould is adopted to ensure tight press connection. |
| |
|
|
Model |
Range of Application |
Crimping force |
Stroke |
Standard dies |
Weight |
Packaging & Size |
Package |
Al ,Cu Terminal Crimping |
CYO-300C |
35-240mm2(Al Terminal) |
12 ton |
30mm |
50,70,95,120,150,185,240, |
6.2Kg |
545x130x235mm |
Plastic case |
|
50-300mm2(Cu Terminal) |
300mm2 |
ZYO-400 |
50-300mm2(Al Terminal) |
12 ton |
16mm |
50,70,95,120,150,185,240, |
5.5Kg |
545x130x235mm |
Plastic case |
70-400mm2(Cu Terminal) |
300,400mm2 |

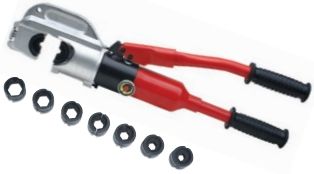

ZCO-400 |
50-300mm2(Al Terminal) |
12 ton |
32 mm |
50,70,95,120,150,185,240, |
6.5Kg |
545x130x235mm |
Plastic case |
70-400mm2(Cu Terminal) |
300,400mm2 |
|
| |
|
|
| |
|
|
| |
|
|

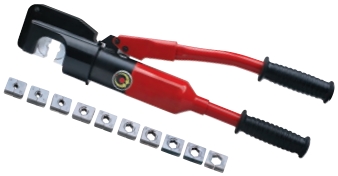

ZCO-300 |
|
|
| |
|
|
|
|
Safety system inside
It is applicable crimping cable copper and aluminum terminals.
Hexagonal mould is adopted to ensure tight press connection. |
| |
|
|
| |
|
|

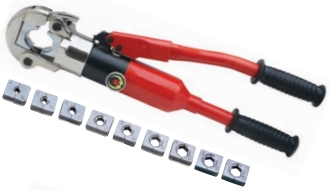

FKO-240A |
|
|
| |
|
|
|
|
Safety system inside
With two stages of high and low pressure, when the safety protection device with“crack”sound will be finished operating.
With conjoined design of pump body, pressing head part can rotate at 180 degrees of angle. |
| |
|
|
| |
|
|

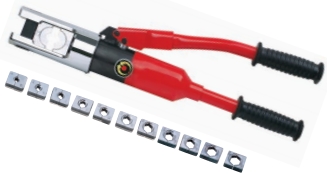

ZHO-300 |
|
|
| |
|
|
|
|
Safety system inside
It is applicable crimping cable copper and aluminum terminals.
Hexagonal mould is adopted to ensure tight press connection. |
| |
|
|
Model |
Range of Application |
Crimping force |
Stroke |
Standard dies |
Weight |
Packaging & Size |
Package |
Al ,Cu Terminal Crimping |
ZCO-300 |
10-240mm2 (Al Terminal) |
10 ton |
30mm |
16,25,35,50,70,95,120, |
5Kg |
545x130x235mm |
Plastic case |
16-300mm2 (Cu Terminal) |
150,185,240,300mm2 |
FKO-240A |
10-185mm2 (Al Terminal) |
10 ton |
16 mm |
16,25,35,50,70,95,120, |
4.8Kg |
545x130x235mm |
Plastic case |
16-240mm2 (Cu Terminal) |
150,185,240mm2 |
ZHO-300 |
35-240mm2 (Al Terminal) |
10 ton |
16 mm |
16,25,35,50,70,95,120, |
4.5Kg |
545x130x235mm |
Plastic case |
16-300mm2 (Cu Terminal) |
150,185,240,300mm2 |
|
| |
|
|
| |
|
|
| |
|
|
CPO-150S |
|
|
| |
|
|
|
|
Safety system inside
With two stages of high and low pressure, when the safety protection device with
“crack”sound will be finished operating.
With conjoined design of pump body, pressing head part can rotate at 180 degrees of angle. |
| |
|
|
| |
|
|

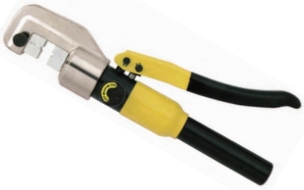

YQ-70 |
|
|
| |
|
|
|
|
It is applied to over the ad distribution and press connection for copper terminals and sleeve of underground cable. Hexagonal mould is adopted to ensure tight press connection, good electric conduction and non-easy shedding. |
| |
|
|
| |
|
|

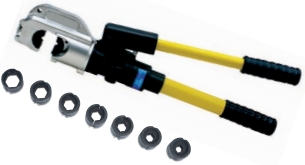

EP-430 |
|
|
| |
|
|
|
|
Safety system inside
It is applicable crimping cable copper and aluminum terminals.
Hexagonal mould is adopted to ensure tight press connection. |
| |
|
|
| |
|
|
Model |
Range of Application |
Crimping force |
Stroke |
Standard dies |
Weight |
Packaging & Size |
Package |
Al ,Cu Terminal Crimping |
| CPO-150S |
8-100mm2(Al Terminal) 16-150mm2(Cu Terminal) |
10 ton |
14 mm |
Female dies (Male dies): 16,25,35,50,70,95,120,
150mm2 |
4.8Kg |
545x130x235mm |
Plastic case |
YQ-70 |
6-70mm2(Al Terminal) |
6 ton |
10 mm |
Female dies: 8-38,
60-70mm2 |
2.5Kg |
545x130x235mm |
Plastic case |
6-70mm2(Cu Terminal) |
Male dies: 14-22,
38-60,70mm2 |
EP-430 |
35-300mm2(Al Terminal) |
12 ton |
32mm |
50,70,95,120,150,
185,240,300,400mm2 |
6.4Kg |
755x130x230mm |
Plastic case |
50-400mm2(Cu Terminal) |
|
| |
|
|
| |
|
|
| |
|
|

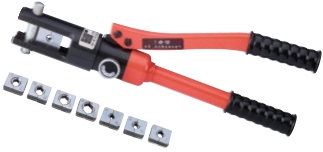

HP-120 / HP-120B |
|
|
| |
|
|
|
|
It is applied to overthead distribution and press connection for copper terminals and sleeve of underground cable.Hexagonal mould is adoptedto ensure tight press connection,good electric conduction and non-easy shedding.
HP-120B Safety system inside
|
| |
|
|
| |
|
|

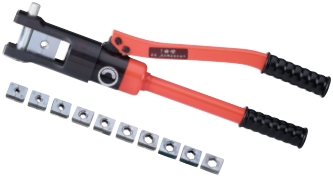

HP-240 |
|
|
| |
|
|
|
|
It is applicable to press connection of cable copper and aluminum terminal bushing;
Hexagonal mould is adopted to ensure tight press connection. |
| |
|
|
| |
|
|

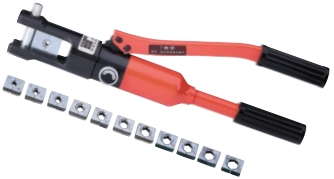

HP-300 / HP-300B |
|
|
| |
|
|
|
|
It is applied to overthead distribution and press connection for copper terminals and sleeve of underground cable. Hexagonal mould is adopted to ensure tight press connection, good electric conduction and non-easy shedding.
HP-300B Safety system inside
|
| |
|
|
| |
|
|

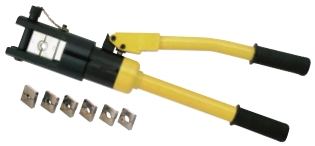

YQ-120A |
|
|
| |
|
|
|
|
It is applied to overthead distribution and press connection for copper terminals and sleeve of underground cable. Hexagonal mould is adopted to ensure tight press connection, good electric conduction and non-easy shedding. |
| |
|
|
| |
|
|

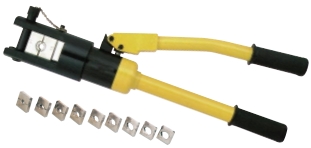

YQ-240A |
|
|
| |
|
|
|
|
It is applicable crimping cable copper and aluminum terminals.
Hexagonal mould is adopted to ensure tight press connection. |
| |
|
|
| |
|
|

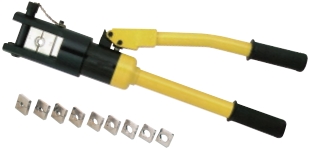

YQ300A |
|
|
| |
|
|
|
|
It is applicable crimping cable copper and aluminum terminals.
Hexagonal mould is adopted to ensure tight press connection. |
| |
|
|
| |
|
|
Model |
Range of Application |
Crimping force |
Stroke |
Standard dies |
Weight |
Packaging & Size |
Package |
Al ,Cu Terminal Crimping |
YQ-120A |
10-120mm2( Al Terminal)
16-120mm2(Cu Terminal) |
8 ton |
13 mm |
16,25,35,50,70,95,120mm2 |
4.8Kg |
545x130x235mm |
Plastic case |
YQK-240A |
10-185mm2(Al Terminal)
16-240mm2(Cu Terminal) |
8 ton |
16 mm |
16,25,35,50,70,95,120,150,
185,240mm2 |
4.8Kg |
545x130x235mm |
Plastic case |
YQK-300A |
10-185mm2(Al Terminal)
16-300mm2(Cu Terminal) |
8 ton |
16 mm |
16,25,35,50,70,95,120,150,
185,240,300mm2 |
6.4Kg |
755x130x230mm |
Plastic case |
|
| |
|
|
| |
|
|
| |
|
|

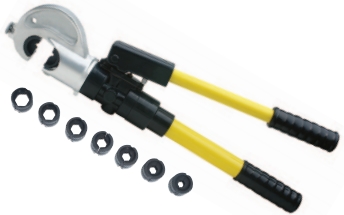

EP-410 |
|
|
| |
|
|
|
|
Safety system inside
It is applicable to press connection of cable copper and aluminum terminal bushing;
Hexagonal mould is adopted to ensure tight press connection.
With two stages speed of high and low pressure,it is easy for operating oil feeding speed and convenient for scavenge oil by adopting rot ary-type extrusion mode.
I lead part can rotate at 180_ degrees. |
| |
|
|
| |
|
|

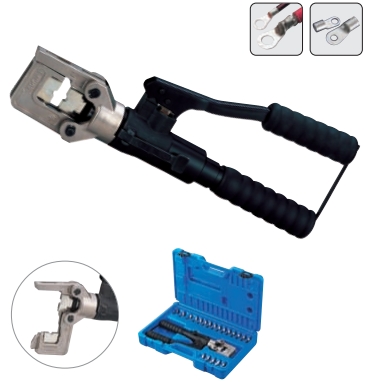

HT-51 |
|
|
| |
|
|
|
|
The compression pliers are designed for hydraulic crimping on power cable and wire, The crimped conductor is tested in high conductively and close contact so that it’s uneasy to break out and turn hot.
Dies are quickly put on tube by double speed unit. Then compression force lift and automatically change to low speed, The operation finish with energy saving and time shorten.
The head could be rotated at 1800 freely for narrow space working.
Fitted with safety valve, When pressure reaches to limited max, Value pressure release automatically to prevent over pressure.
Packing case is made of integral plastic box. |
| |
|
|
Model |
Range of Application |
Crimping force |
Stroke |
Standard dies |
Weight |
Packaging & Size |
Package |
Al ,Cu Terminal Crimping |
EP-410 |
35-240mm2(Al Terminal)
50-300mm2(Cu Terminal) |
12 ton |
30 mm |
50,70,95,120,150,
185,240,300mm2 |
6.6Kg |
755x130x230mm |
Plastic case |
HT-51 |
10-185mm2(Al
Terminal)
10-240mm2(Cu Terminal) |
8 ton |
16 mm |
10,16,25,35,50,70,95,
120,150,185,240mm2 |
2.7Kg |
380x130x70mm |
Plastic case |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
