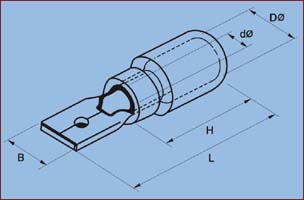

Insulated Male Disconnects |
| |
|
|
| |
| |
Sectional area of conductor:0.5 - 1.5 mm² (A.W.G 22 - 16 ) Imax = 10A |
Item No |
NEMA TAB(mm) |
Thickness |
Dimension((mm) |
color |
B |
dΦ |
DΦ |
L |
H |
MDD 1.25 - 110(5) |
0.5 x 2.8 |
0.5 |
2.8 |
1.7 |
4.3 |
17.7 |
10 |
red |
MDD 1.25 - 110(8) |
0.8 x 2.8 |
0.8 |
MDD 1.25 - 187(5) |
0.5 x 4.75 |
0.5 |
4.75 |
1.7 |
4.3 |
20 |
MDD 1.25 - 187(8) |
0.8 x 4.75 |
0.8 |
4.75 |
1.7 |
4.3 |
20 |
MDD 1.25 - 250 |
0.8 x 6.35 |
0.4 x 2 |
6.35 |
1.7 |
4.3 |
21 |
|
| |
| |
Sectional area of conductor:1.5 - 2.5 mm² (A.W.G 16 - 14 ) Imax = 15A |
Item No |
NEMA TAB(mm) |
Thickness |
Dimension(mm) |
color |
B |
dΦ |
DΦ |
L |
H |
MDD 2 - 187(5) |
0.5 x 4.75 |
0.5 |
4.75 |
2.3 |
4.3 |
20 |
10 |
blue |
MDD 2 - 187(8) |
0.8 x 4.75 |
0.8 |
4.75 |
2.3 |
4.3 |
18.5 |
MDD 2 - 250 |
0.8 x 6.35 |
0.4 x 2 |
6.35 |
2.3 |
4.3 |
21 |
|
| |
| |
Sectional area of conductor:4 - 6 mm² (A.W.G 12 - 10 ) Imax = 24A |
Item No |
NEMA TAB(mm) |
Thickness |
Dimension(mm) |
color |
B |
dΦ |
DΦ |
L |
H |
MDD 5.5 - 250 |
0.8 x 6.35 |
0.4 x 2 |
6.35 |
3.4 |
5.7 |
25 |
13 |
yellow |
|
| |
| |
|
| |
| |
| |
|
