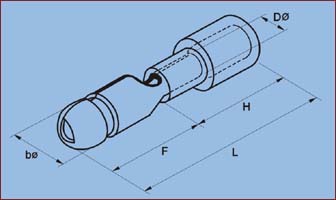

Insulated Male Bullet Disconnects



Sectional area of conductor:0.5 - 1.5 mm² (A.W.G 22 - 16 )   Imax = 10A   Material: Copper
Item No
Thickness
Item No(mm)
color
bΦ
F
DΦ
H
L
MPD 1.25 - 156
0.4
4
11
1.7
10
21
red


Sectional area of conductor:1.5 - 2.5 mm² (A.W.G 16 - 14 )   Imax = 15A   Material: Copper
Item No
Thickness
Item No(mm)
color
bΦ
F
DΦ
H
L
MPD 2 - 156
0.4
4
11
2.3
10
21
blue
MPD 2 - 195
0.4
5
11
2.3
10
21


Sectional area of conductor:4 - 6 mm² (A.W.G 12 - 10 )   Imax = 24A   Material: Copper
Item No
Thickness
Item No(mm)
color
bΦ
F
DΦ
H
L
MPD 5.5 - 195
0.4
5
12
3.4
13
25
yellow
