Outdoor Control Box

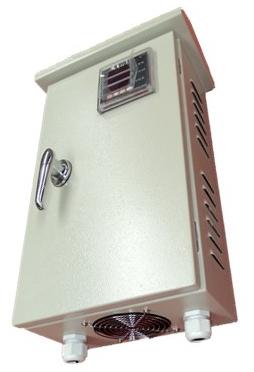

Outdoor Control Box:

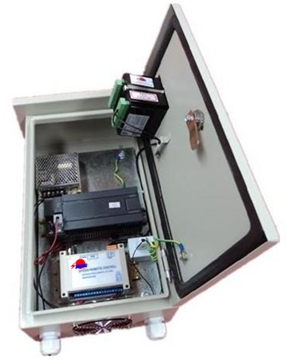

1. Outdoor Control Box is a kind of according to component model, specification, quantity design assemble type outdoor rain-proof distribution box with kinds of control functions.

2. Cabinet size can be arbitrarily selected. Welding process is totally enclosed argon arc welding method. Door plank uses Ann polyester waterproof sealing, with body structure close to the quite perfect combination.

3. Protection grade reaches : IP55, IP65. Exterior color spraying green thermosetting powder coatings, Advanced spraying process through high-temperature processing, which can make all kinds of complex products in the environment will not rust off.

4. Standard color is: outdoor type RAL7032, Outdoor RAL7035.

5. All Outdoor Control Box box Can also be customized. Material using cold-rolled steel or stainless steel.

6. The quantity of the fans will be installed in the panel of the bottom is according to the requirement of the customers.


Model
Size（mm）
Thickness（mm）
　
　
　

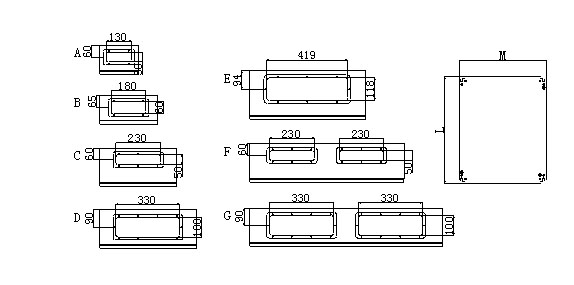

Inlet and outlet hole size
Lock quantity

Mounting plate dimensions

（mm）
H
W
D
Door
Body
Bottom
　
　
L
M
CB2215
200
200
150
1.2
1.2
2
A
1
150
150
CB2521
250
200
150
1.2
1.2
2
A
1
200
150
CB3215
300
200
150
1.2
1.2
2
A
1
250
150
CB3220
300
200
200
1.2
1.2
2
A
1
250
150
CB3251
300
250
150
1.2
1.2
2
A
1
250
200
CB3252
300
250
200
1.2
1.2
2
A
1
250
200
CB3315
300
300
150
1.2
1.2
2
B
1
250
250
CB3320
300
300
200
1.2
1.2
2
B
1
250
250
CB3325
300
300
250
1.2
1.2
2
B
1
250
250
CB4315
400
300
150
1.2
1.2
2
B
1
350
250
CB4320
400
300
200
1.2
1.2
2
B
1
350
250
CB4325
400
300
250
1.2
1.2
2
B
1
350
250
CB4330
400
300
300
1.2
1.2
2
B
1
350
250
CB4415
400
400
150
1.2
1.2
2
C
1
350
350
CB4420
400
400
200
1.2
1.2
2
C
1
350
350
CB4425
400
400
250
1.2
1.2
2
C
1
350
350
CB4430
400
400
300
1.2
1.2
2
C
1
350
350
CB5315
500
300
150
1.2
1.2
2
B
1
450
250
CB5320
500
300
200
1.2
1.2
2
B
1
450
250
CB5325
500
300
250
1.2
1.2
2
B
1
450
250
CB5415
500
400
150
1.2
1.2
2
C
1
450
350
CB5420
500
400
200
1.2
1.2
2
C
1
450
350
CB5425
500
400
250
1.2
1.2
2
C
1
450
350
CB5430
500
400
300
1.2
1.2
2
C
1
450
350
CB5520
500
500
200
1.2
1.2
2
D
1
450
450
CB5525
500
500
250
1.2
1.2
2
D
1
450
450
CB5530
500
500
300
1.2
1.2
2
D
1
450
450
CB6415
600
400
150
1.2
1.2
2
C
2
550
350
CB6420
600
400
200
1.2
1.2
2
C
2
550
350
CB6425
600
400
250
1.2
1.2
2
C
2
550
350
CB6430
600
400
300
1.2
1.2
2
C
2
550
350
CB6515
600
500
150
1.2
1.2
2
D
2
550
450
CB6520
600
500
200
1.2
1.2
2
D
2
550
450
CB6525
600
500
250
1.2
1.2
2
D
2
550
450
CB6530
600
500
300
1.2
1.2
2
D
2
550
450
CB6615
600
600
150
1.2
1.2
2
D
2
550
550
CB6620
600
600
200
1.2
1.2
2
D
2
550
550
CB6625
600
600
250
1.2
1.2
2
D
2
550
550
CB6630
600
600
300
1.2
1.2
2
D
2
550
550
CB7515
700
500
150
1.2
1.2
2
D
2
650
450
CB7520
700
500
200
1.2
1.2
2
D
2
650
450
CB7525
700
500
250
1.2
1.2
2
D
2
650
450
CB7620
700
600
200
1.2
1.2
2
D
2
650
550
CB7625
700
600
250
1.2
1.2
2
D
2
650
550
CB7630
700
600
300
1.5
1.5
2
D
2
650
550
CB8620
800
600
200
1.5
1.5
2
D
2
750
550
CB8625
800
600
250
1.5
1.5
2
D
2
750
550
CB8630
800
600
300
1.5
1.5
2
D
2
750
550
CB8820
800
800
200
1.5
1.5
2
F
2
750
750
CB8825
800
800
250
1.5
1.5
2
F
2
750
750
CB8830
800
800
300
1.5
1.5
2
F
2
750
750
CB10620
1000
600
200
1.5
1.5
2
D
2
950
550
CB10625
1000
600
250
1.5
1.5
2
D
3
950
550
CB10630
1000
600
300
1.5
1.5
2
D
3
950
550
CB10720
1000
700
200
1.5
1.5
2
D
3
950
650
CB10820
1000
800
200
1.5
1.5
2
F
3
950
750
CB10825
1000
800
250
1.5
1.5
2
F
3
950
750
CB10830
1000
800
300
1.5
1.5
2
F
3
950
750
CB10840
1000
800
400
1.5
1.5
2
F
3
950
750
CB101025
1000
1000
250
1.5
1.5
2
G
3
950
950
CB101030
1000
1000
300
1.5
1.5
2
G
3
950
950
CB12620
1200
600
200
1.5
1.5
2
D
3
1150
550
CB12625
1200
600
250
1.5
1.5
2
D
3
1150
550
CB12630
1200
600
300
1.5
1.5
2
D
3
1150
550
CB12820
1200
800
200
1.5
1.5
2
F
3
1150
750
CB12825
1200
800
250
1.5
1.5
2
F
3
1150
750
CB12830
1200
800
300
1.5
1.5
2
F
3
1150
750
CB12840
1200
800
400
1.5
1.5
2
F
3
1150
750
CB121025
1200
1000
250
1.5
1.5
2
G
3
1150
750
CB121030
1200
1000
300
1.5
1.5
2
G
3
1150
950
CB121040
1200
1000
400
1.5
1.5
2
G
3
1150
950
CB14630
1400
600
300
1.5
1.5
2
D
3
1350
550
CB14830
1400
800
300
1.5
1.5
2
F
3
1350
750
CB14840
1400
800
400
1.5
1.5
2
F
3
1350
750
CB141030
1400
1000
300
1.5
1.5
2
G
3
1350
950
CB141230
1400
1200
300
1.5
1.5
2
G
3
1350
1150
