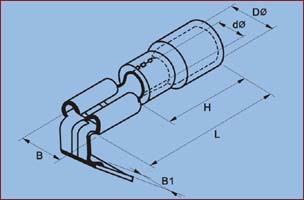

Shoulder Shaped Male and Female Pre-insulating Joints




Sectional area of conductor:0.5 - 1.5 mm² (A.W.G 22 - 16 )   Imax = 10A   Material:Copper
Item No
NEMA TAB(mm)
Dimension(mm)
B
B1
H
DΦ
dΦ
L
PBDD 1.25 - 250
0.8 x 6.35
7.4
6.35
10
3.8
1.7
21.5


Sectional area of conductor:1.5 - 2.5 mm² (A.W.G 16 - 14 )   Imax = 15A   Material:Copper
Item No
NEMA TAB(mm)
Dimension(mm)
B
B1
H
DΦ
dΦ
L
PBDD 2 - 250
0.8 x 6.35
7.4
6.35
10
4.3
2.3
21.5


Sectional area of conductor:4 - 6 mm² (A.W.G 12 - 10 )   Imax = 24A   Material:Copper
Item No
NEMA TAB(mm)
Dimension(mm)
B
B1
H
DΦ
dΦ
L
PBDD 5.5 - 250
0.8 x 6.35
7.4
6.3
13
5.7
3.4
25
