Non-Insulated PIN Terminals(TZ type)



Sectional area of conductor:0.5 - 1.5 mm² (A.W.G 22 - 16 )   Imax = 19A
Item No

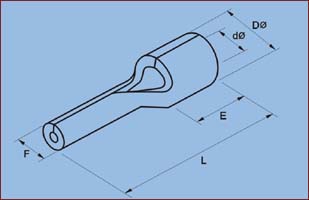

Dimension(mm)
F
L
E
DΦ
dΦ
PTN 1.25 - 9
1.9
13.8
4.8
3.4
1.7
PTN 1.25 - 10
1.9
14.8
PTN 1.25 - 12
1.9
16.8
PTN 1.25 - 13
1.9
17.8
PTN 1.25 - 18
1.9
22.8


Sectional area of conductor:1.5 - 2.5 mm² (A.W.G 16 - 14 )   Imax = 27A
Item No
Dimension （mm)
F
L
E
DΦ
dΦ
PTN 2 - 9
1.9
13.8
4.8
4.1
2.3
PTN 2 - 10
1.9
14.8
PTN 2 - 12
1.9
16.8
PTN 2 - 13
1.9
17.8
PTN 2 - 18
1.9
22.8


Sectional area of conductor:4 - 6 mm² (A.W.G 12 - 10 )   Imax = 48A
Item No
Dimension(mm)
F
L
E
DΦ
dΦ
PTN 5.5 - 13
2.8
19.8
6.8
5.6
3.4
