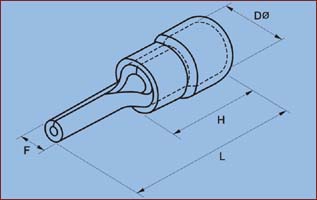

Insulated Pin Terminal



Sectional area of conductor:0.5 - 1.5 mm ² (A.W.G 22 - 16 ) Imax = 19A
Item No
Dimension(mm)
color
F
L
H
DΦ
PTV 1.25 - 9
1.9
19
10
4.3
red
PTV 1.25 - 10
1.9
20
PTV 1.25 - 12
1.9
22
PTV 1.25 - 13
1.9
23
PTV 1.25 - 18
1.9
28


Sectional area of conductor:1.5 - 2.5 mm ² (A.W.G 16 - 14 ) Imax = 27A
Item No
Dimension(mm)
color
F
L
H
DΦ
PTV 2 - 9
1.9
19
10
4.9
blue
PTV 2 - 10
1.9
20
PTV 2 - 12
1.9
22
PTV 2 - 13
1.9
23
PTV 2 - 18
1.9
28


Sectional area of conductor:4 - 6 mm ² (A.W.G 12 - 10 ) Imax = 48A
Item No
Dimension(mm)
color
F
L
H
DΦ
PTV 5.5 - 13
2.8
25.5
12.5
6.7
yellow
