MODEL: S113F03 |
| |
|
|
|
|
|
| |
|
|
|
|
| |
|
|
1. Description |
| |
It's the smallest AMR meter in the world with multifunction. It is popular in West European as its standard installation with DIN EN 50022, small size, RS485 as well as multi-functional, which is the ideal solution for residential and commercial installations.
|
| |
| |
2. Technical Parameters |
| |
Voltage |
230V |
Current |
10(100) A |
Accuracy class |
1.0 |
Standard |
IEC62052-11, IEC62053-21 |
Frequency |
50-60Hz |
Impulse constant |
1000imp/kWh |
Display |
LCD 5+1 = 99999.9kW |
Power consumption |
≤8VA ≤0.4Wh |
Starting current |
0.004Ib |
Temperature range |
20 ～ 65℃ |
Flashing red |
Impulse indication, width=90ms |
Average humidity value of year |
75% |
Maximal humidity value |
95% |
Meter Size |
95.3*18.2*72mm |
Net Weight |
0.10kg |
|
| |
| |
3. Features |
| |
The meter can read these data during the definite time period and analysis the quality and load condition of user's grid;
DIN RAIL standard installation size;
Only 18mm wide, can up to 100A;
RS485 communication, Protocol: IEC1107 or Modbus-RTU Mode;
Multi-tariff function. The user can set time period through RS485 communication,then the meter will measure the energy of each different time period;
Meter has 3.6V Lithium battery, which is used to support multi-tariff function. And the precision of RTC is better than 0.5s/day;
Blue LCD backlight allows the meter to be read in low light conditions;
Display current and voltage;
Accurately measure forward and reverse energy;
Reactive energy can be measured;
The data can be displayed through 2methods:
a. Display data automatically by page and the time interval is 5s.
b. Check data through the external button.
Material of Meter housing: ABS fire resistant;
Degree of Protection: IP51 (indoor meter); |
| |

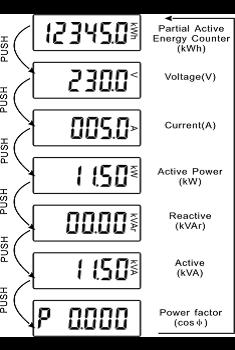

4. Parameters show on the LCD screen |
| |
|
| |
|
|
|
