MODEL: S512F14 |
| |
|
|
|
|
|
|
|
 |
 |
| |
|
| |
1. Description |
| |

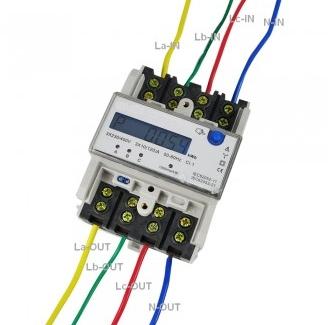

This is a three phase five module energy meter which could reach to 120A. It could awake LCD through pressing the button when power off. This meter is very popular worldwide. Moreover, it is convenient to install. |
| |
| |
2. Technical Parameters |
| |
Voltage |
3*230/380V |
Current |
3*10(120) A |
Accuracy class |
1.0 |
Standard |
IEC62052-11, IEC62053-21 |
Frequency |
50-60Hz |
Impulse constant |
1000imp/kWh |
Display |
LCD 6+1 |
Power consumption |
≤1W ＜8VA |
Starting current |
0.004Ib |
Working Temperature |
-25～70℃ |
Storage Temperature |
-40～80℃ |
Average humidity value of year |
≤75% |
Meter Size |
128*90*67mm |
Net Weight |
0.6108kg |
|
| |
| |
3. Features |
| |
Three phase four wire energy meter, active measurement;
30min demand;
When on the low consumption condition, it could display through pressing the button, last for 10s. |
|
| |
| |
|
|
