MODEL: S519F04 |
|
|
|
|
|
|
| |
|
|
|
| |
|
| |
1. Description |
| |

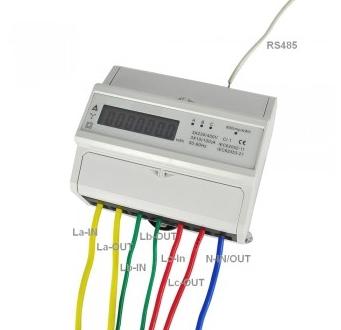

This is a three phase seven module Din-rail meter with RS485 communication ( MODBUS protocol ). |
| |
| |
2. Technical Parameters |
| |
| |
Voltage |
3*230/380V |
Current |
3*10(100) A |
Accuracy class |
1.0 |
Standard |
IEC62052-11, IEC62053-21 |
Frequency |
50-60Hz |
Impulse constant |
800imp/kWh |
Display |
LCD 6+1 |
Power consumption |
≤1W ＜7VA |
Working Temperature |
-25～70℃ |
Storage Temperature |
-40～80℃ |
Starting current |
0.4%Ib |
Average humidity value of year |
≤95% |
Meter Size |
100*122*65mm |
Net Weight |
0.3943kg |
|
| |
| |
|
|
|
