SC Copper Cable Lug




Model
Dia d2 Φ （ mm)

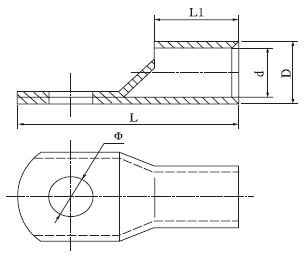

Dimension (mm)
Sectional Area of Conductor (mm ² )
d Φ
D Φ
L1
L
SC 1.5 - 5
5.2
1.8
3.7
5
16
1.5
SC 2.5 - 4
4.2
2.4
4
7
18
2.5
SC 2.5 - 5
5.2
20
SC 4 - 5
5.2
3.1
4.8
7
20
4
SC 4 - 6
6.5
SC 6 - 5
5.2
3.8
5.5
9
24
6
SC 6 - 6
6.5
SC 10 - 6
6.5
5
6.5
9
26
10
SC 10 - 8
8.4
SC 16 - 6
6.5
5.7
7.5
11
30
16
SC 16 - 8
8.4
SC 25 - 6
6.5
7.2
9
13
35
25
SC 25 - 8
8.4
SC 35 - 8
8.4
8.5
10.8
13.5
38
35
SC 35 - 10
10.5
SC 50 - 8
8.4
9.8
12.5
16
44
50
SC 50 - 10
10.5
SC 70 - 10
10.5
11.5
14.5
18
51
70
SC 70 - 12
13
SC 95 - 10
10.5
13.7
17
22
57
95
SC 95 - 12
13
SC 120 - 12
13
15
19
24
64
120
SC 120 - 16
17
SC 150 - 12
13
16.7
21
26
71
150
SC 150 - 16
17
SC 185 - 16
17
18.5
23
30
79
185
SC 240 - 16
21
21
26
38
93
240
SC 240 - 20
17
SC 300 - 16
17
24.5
30
42
103
300
SC 300 - 20
21
SC 400 - 16
17
27
34
42
113
400
SC 400 - 20
21
SC 500 - 16
17
30
38
48
123
500
SC 500 - 20
21
SC 630 - 20
21
35
45
56
135
630
SC 800 - BL
-
39
50
60
170
800
SC 1000 - BL
-
44
56
87
200
1000
