SF Junction Box Series





1. Specifications

1).Waterproof Electric Plastic Box / Enclosure
2).IP65 IP66
3).CE ROHS TUV
4).3 years warrant
5).30 years manufacture


2. Description

1). Electric Junction Distribution Plastic Box / Enclosure.
2). Waterproof and dustproof.
3). Clour : Grey and Transparent.
4). This product is suitable for indoor and outdoor electricaL,electronic,communication,fire equipment,control panel,terminal BOX,PCB BOX,shipping,oil chemical,large factories,coastal factories, discharging terminal equipment,dirty wastewater treatment facilities,environmental hazards facilities,etc.
5). Products choose high quality thermoplastic plastics ABS,PC,nylon,taibai,also can according to the custmer's requirement to select material,non-corrosive good insulation.
6). 24 ways distribution box.

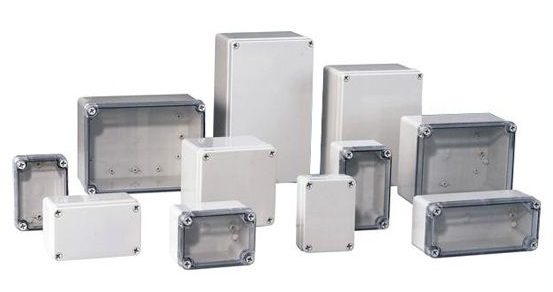

No.
Model
Size(mm)
Model
Size(mm)
1
SF-GC-0506
50*65*55
SF-TC-0506
50*65*55
2
SF-GC-0609
65*95*55
SF-TC-0609
65*95*55
3
SF-GC-0811-S
80*110*45
SF-TC-0811-S
80*110*45
4
SF-GC-0811
80*110*70
SF-TC-0811
80*110*70
5
SF-GC-0811-1
80*110*85
SF-TC-0811-1
80*110*85
6
SF-GC-0813
80*130*70
SF-TC-0813
80*130*70
7
SF-GC-0813-1
80*130*85
SF-TC-0813-1
80*130*85
8
SF-GC-0816-S
80*160*55
SF-TC-0816-S
80*160*55
9
SF-GC-0818
80*180*70
SF-TC-0818
80*180*70
10
SF-GC-0825
80*250*70
SF-TC-0825
80*250*70
11
SF-GC-0825-1
80*250*85
SF-TC-0825-1
80*250*85
12
SF-GC-1212-S
120*120*75
SF-TC-1212-S
120*120*75
13
SF-GC-1212
120*120*100
SF-TC-1212
120*120*100
14
SF-GC-1217
125*175*75
SF-TC-1217
125*175*75
15
SF-GC-1217-1
125*175*100
SF-TC-1217-1
125*175*100
16
SF-GC-1417
140*170*95
SF-TC-1417
140*170*95
17
SF-GC-1520
150*200*100
SF-TC-1520
150*200*100
18
SF-GC-1520-1
150*200*130
SF-TC-1520-1
150*200*130
19
SF-GC-1525
150*250*100
SF-TC-1525
150*250*100
20
SF-GC-1525-1
150*250*130
SF-TC-1525-1
150*250*130
21
SF-GC-1717-1
175*175*100
SF-TC-1717-1
175*175*100
22
SF-GC-2020-S
200*200*95
SF-TC-2020-S
200*200*95
23
SF-GC-2020
200*200*130
SF-TC-2020
200*200*130
24
SF-GC-2819
280*190*130
SF-TC-2819
280*190*130
25
SF-GC-1010
100*100*50
SF-TC-1010
100*100*50

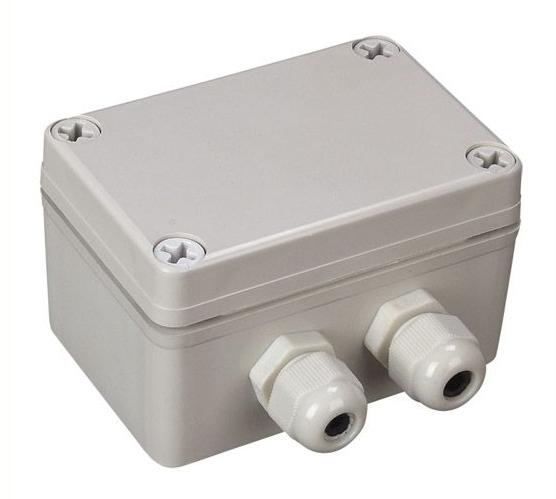

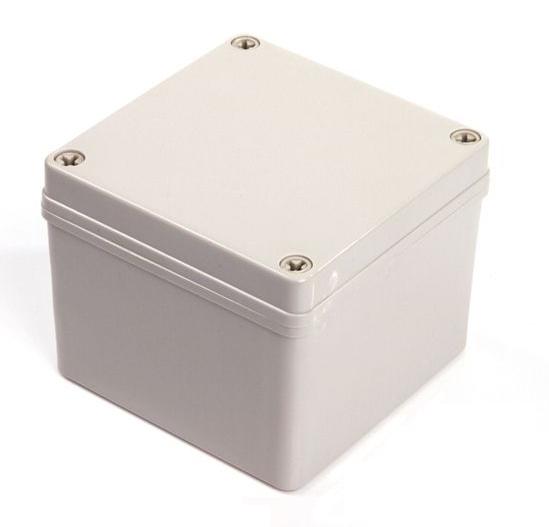

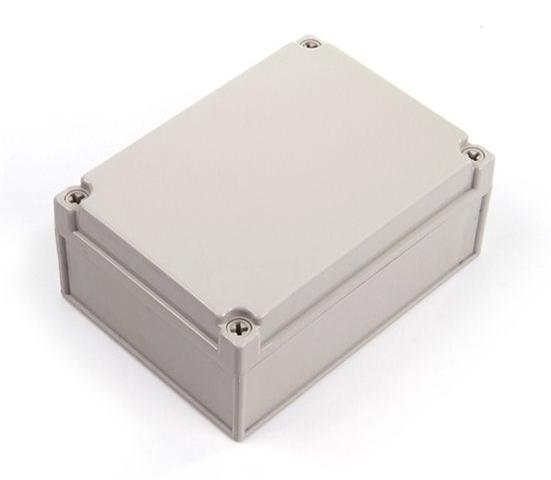

“GC”means Grey Cover

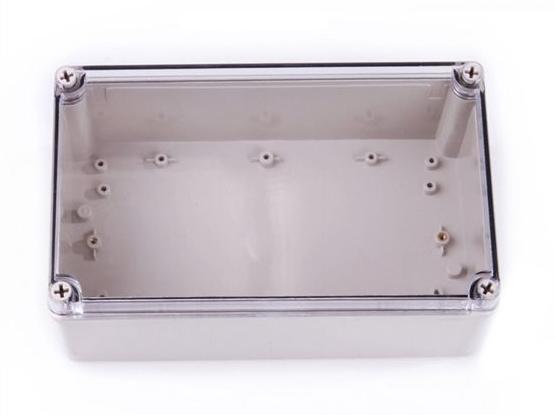

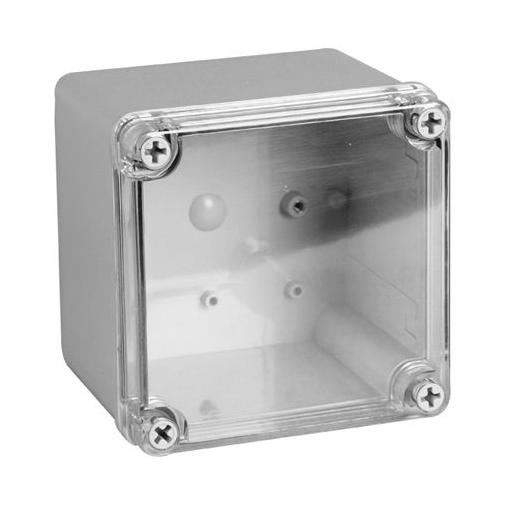

“TC”means Transparent Cover
