Type
Current
No. of poles

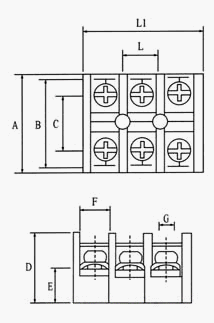

Dimension (mm)
L
L1
A
B
C
D
E
F
G
TC-603
60A
3
28.5
86.5
38
42.7
25.5
31
15
17
M6
TC-604
4
28.5
115
38
42.7
25.5
31
15
17
M6
TC-1003
100A
3
34.5
113.5
46.5
55.2
28
36.3
17.3
22.5
M6
TC-1004
4
34.5
137.5
46.5
55.2
28
36
17.3
22.5
M6
TC-1503
150A
3
38.5
115
57.2
67
30.5
340
19.8
25.3
M8
TC-1504
4
38.5
153
57.2
67
30.5
40
19.8
25.3
M8
TC-2003
200A
3
44.5
133
63
72.1
34
44.4
23
28.3
M8
TC-2004
4
44.5
177
63
72.1
34
44.4
23
28.3
M8
TC-3003
300A
3
55
164
78
89.4
47.5
50.6
27
30
M10
TC-3004
4
55
218
78
89.4
47.5
50.6
27
30
M10
TC-4003
400A
3
55
164
78
89.4
47.5
50.6
27
30
M10
TC-4004
4
55
218
78
89.4
47.5
50.6
27
30
M10
