U-Bolts

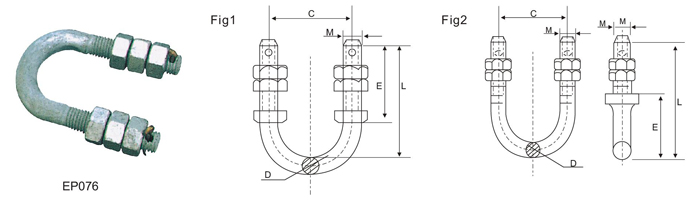

Model Dimensions(mm) Fig Rated failure load(kN) Weight(kg0
C D E L M
U-1240
 40 12 45 80 12 Fig1 35 0.38
U-1440
 40 14 60 90 14 35 0.42
U-1470
 70 14 70 120 14 40 0.46
U-1670
 70 16 65 130 16 50 0.66
U-1870
 70 18 80 130 18 60 0.86
U-1880
 80 18 60 130 18 60 0.88
U-1890
 90 18 60 140 18 60 0.9
U-2070
 70 20 90 130 20 70 1.2
U-2080
 80 20 70 140 20 70 1.7
U-2090
 90 20 90 150 20 70 1.28
U-2280
 80 22 90 150 22 100 1.3
U-2290
 90 22 100 160 22 100 1.34
U-1880
 80 18 39 130 18 Fig2 60 0.88
U-2080
 80 20 43 140 20 70 1.08
U-2080
 80 22 45 150 22 100 1.28
