Specification

Connector Hard Wire(mm2) Soft Wire(mm2) Rated Current Rated Voltage Dimensions
UK2.5B
 0.2-4 0.2-2.5 32A 690VAC 6.2x42.5x42

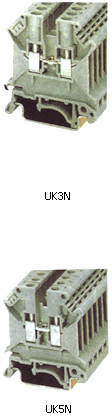

UK3N
 0.2-4 0.2-2.5 32A 800VAC 6.2x42.5x42
UK5N
 0.2-6 0.2-4 41A 800VAC 6.2x42.5x42
UK6N
 0.2-10 0.2-2.5 57A 800VAC 6.2x42.5x47
UK10N
 0.5-16 0.5-10 76A 800VAC 10.2x42.5x47
UK16N
 0.2-25 4-16 101A 800VAC 12.2x42.5x54
UK35N
 0.75-50 0.75 150A 1000VAC 15.2x50.0x62
UKH50
 16-50 25-50 150A 1000VAC 20x70.5x83.5
UKH95
 25-95 35-95 232A 1000VAC 25x83x97.5
UKH150
 35-150 50-150 309A 1000VAC 31x100x118.5


Connector Hard Wire(mm2) Soft Wire(mm2) Rated Current Dimensions
USLKG2.5
 0.2-4 0.2-2.5 32A 6.2x42.5x42
USLKG3
 0.2-4 0.2-2.5 32A 5.2x42.5x47
USLKG5
 0.2-6 0.2-4 41A 6.2x42.5x47
USLKG6N
 0.2-10 0.2-6 57A 8.2x42.5x47
USLKG10N
 0.5-16 0.5-10 76A 10.2x42.5x47
USLKG16N
 2.5-25 4-16 101A 12.2x42.5x54
USLKG35N
 0.75-50 0.75-35 150A 15.2x50.0x62
USLKG50
 16-25 25-50 150A 20x70.5x81.5
